Rotary encoder code switch/EC11

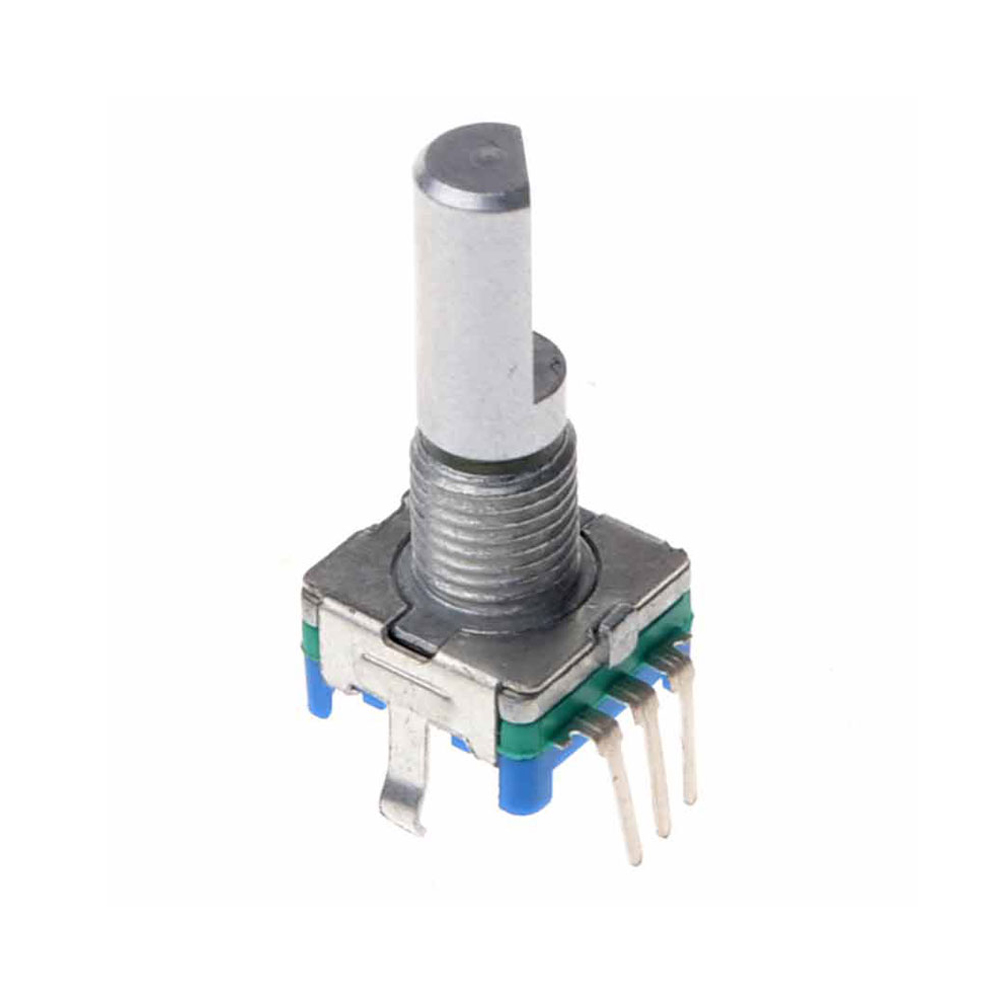

Rotary encoder code switch/EC11/ audio digital potentiometer with switch 5Pin handle length 20mm
11mm Metal Shaft Encoder – EC11 Series
The EC11 Series rotary encoders are compact and highly reliable.
With a robust metal shaft, the EC11 Series of 11mm rotary encoders have an operating life that ranges from competitive to excellent.
The rotary encoder has switch function.
Made of high quality material, anti-corrosion, wear resisting and durable.
Sensitive response, stable performance, long service life.
Simple structure, easy to install and use.
Widely used in automotive electronics, multimedia audio, instrumentation, household appliances, smart home, medical equipment, etc.
Features and Benefits:
• Typical rating 5V dc, 10mA
• EC11E: have an Operating Life of 15,000 Cycles
• EC11EH: have an Operating Life of 30,000 cycles
• EC11K: have an Operating Life of 100,000 cycles 500,000 cycles 1,000,000 cycles
• Operating Temperature ｰ40 to +85℃
|Pulses Per Revolution||15|
|Shaft Diameter||6 mm|
|Encoder Signal||Digital Square Wave|
|Mounting Type||Through Hole|
|Index Output||Not Indexed|
|Mounting Hole Diameter||2.6 x 1.5 mm, 1 mm|
