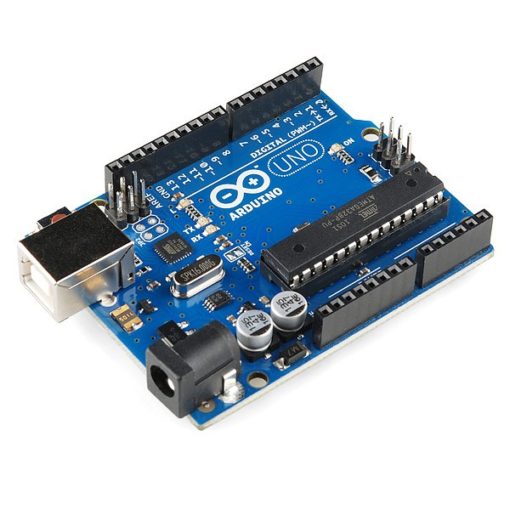

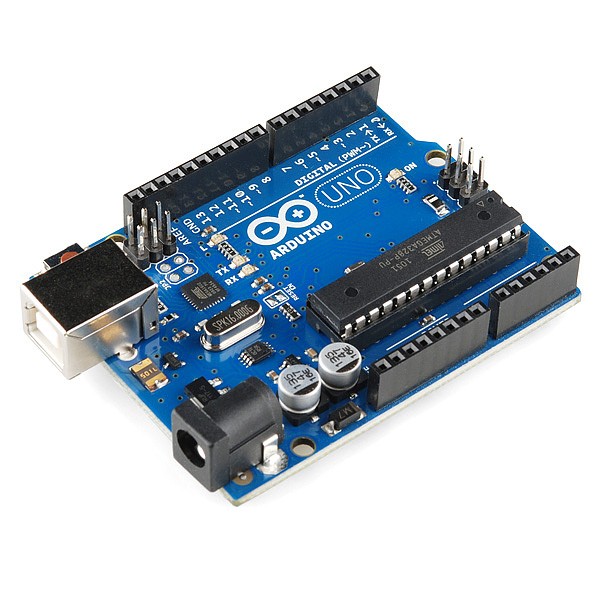

Arduino Uno R3 Board

The Arduino Uno R3 is one of the most widely used and recognized development boards in the world of electronics, prototyping, and embedded systems. It serves as the reference model for the Arduino platform and is especially popular among students, hobbyists, educators, and engineers due to its simplicity, versatility, and user-friendly design. The Uno R3 contains everything needed to support the microcontroller, allowing users to quickly begin building projects by connecting the board to a computer via USB or by powering it through an AC-to-DC adapter or battery.

The Arduino Uno R3 board is ideal for both beginners and advanced users who want to explore electronics and programming.

Key Features

At the core of the Arduino Uno R3 lies the ATmega328 microcontroller, based on the AVR architecture. This chip provides the processing power and memory resources required for coding and running various projects. The board includes 14 digital input/output pins, 6 of which can be used as PWM (Pulse Width Modulation) outputs. These PWM outputs are often used for applications such as controlling the brightness of LEDs, driving motors, or generating variable signals.

The Arduino Uno R3 board stands out due to its high adaptability and support for various projects.

In addition to digital I/O, the Uno R3 also features 6 analog inputs, which are essential for reading sensor values, such as temperature, light intensity, or voltage levels. This mix of digital and analog functionality makes the board suitable for a wide range of applications, from simple blinking LED projects to advanced robotics and IoT solutions.

Moreover, the Arduino Uno R3 board can easily interface with numerous sensors and components, enhancing its functionality.

The board also incorporates a 16 MHz ceramic resonator, which ensures reliable timing for the microcontroller. A USB connection is provided for both power supply and programming, while a power jack allows external supply when projects need more current or standalone functionality. Other essential hardware includes an ICSP header (In-Circuit Serial Programming) for direct microcontroller programming and a reset button to restart the running program.

Using the Arduino Uno R3 board, hobbyists can create impressive projects without extensive prior knowledge.

Revisions and Improvements

The Arduino Uno has gone through multiple revisions. Earlier boards used the FTDI USB-to-serial driver chip to handle communication between the microcontroller and computer. However, the Uno line replaced this with a more integrated solution. Revision 2 introduced a resistor pulling the 8U2 HWB line to ground, simplifying the process of putting the board into DFU (Device Firmware Upgrade) mode.

With Revision 3, several further improvements were made. One important change was the replacement of the ATmega8U2 chip with the ATmega16U2, providing more memory and flexibility for handling USB communications. The reset circuit was also strengthened, improving stability. Additionally, compatibility was expanded so that shields (add-on boards) designed for Uno R3 would be able to work with both 5V boards like the Uno and 3.3V boards such as the Arduino Due. A reserved “not connected” pin was also added for potential future uses.

Technical Specifications

Exploring the Arduino Uno R3 Board

• Microcontroller: ATmega328
• Architecture: AVR
• Operating Voltage: 5 V
• Input Voltage (recommended): 7–12 V
• Digital I/O Pins: 14 (6 provide PWM output)
• Analog Input Pins: 6
• DC Current per I/O Pin: 40 mA
• Flash Memory: 32 KB (0.5 KB used by bootloader)
• SRAM: 2 KB
• EEPROM: 1 KB
• Clock Speed: 16 MHz
• PWM Channels: 6
• PCB Dimensions: 53.4 × 68.6 mm
• Weight: 25 g

These specifications make the board highly capable for most small to medium-sized projects. The 32 KB of flash memory provides enough space for moderate-sized programs, while the SRAM and EEPROM support data storage and runtime operations. The board can be powered directly from a computer’s USB port for development or through an external supply for mobile or embedded systems.

Significance of the Uno R3

The Arduino Uno R3 has become the reference model of the Arduino family. It is designed to be robust, simple, and expandable. The name “Uno,” meaning “one” in Italian, was chosen to mark the release of Arduino 1.0 software, highlighting its importance as the first official stable version of the Arduino environment.

This Arduino Uno R3 board serves as a gateway for those new to programming and electronics.

Its popularity is further enhanced by the extensive global community, countless tutorials, open-source libraries, and a wide range of compatible shields and sensors. This ecosystem makes it one of the easiest boards for beginners to start with, while still being powerful enough for advanced prototyping.

With the support of the community, the Arduino Uno R3 board remains a favorite among tech enthusiasts.

Conclusion

The Arduino Uno R3 board is more than just a microcontroller platform—it is a gateway into the world of electronics and programming. With its well-balanced set of features, ease of use, and strong community support, it continues to be a cornerstone for makers, educators, and professionals worldwide. Whether used for learning, experimenting, or building real-world applications, the Uno R3 remains an essential tool in modern embedded system development.

Ultimately, the Arduino Uno R3 board is a fundamental component in many innovations today.
