Description

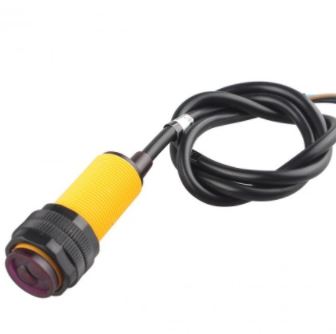

IR-Infrared Obstacle-Avoidance Sensor-E18-D80NK
IR-Infrared Obstacle-Avoidance Sensor-E18-D80NK Transmitter and receiver in one photoelectric sensor.
The sensor has an adjustable detection distance and visible light interference.
It is easy to use and is ideal for panel mounting.
We also stock a bracket, which is perfect for easy mounting of the sensor (HCSENS0007) and also allows easy mounting to one of our robot smart cars.
Electrical Characteristics:
Supply Voltage: 5VDC
Supply Current: The 100mA
Range: 3-80CM
Size: 17mm x 45mm
Lead Length: 45cm
Wire colour codes:
BRN = 5V
BLU = GND
BLK = OUT
Output:
High = triggered
LED:
On when not triggered
Setup instructions:
With nothing obstructing the sensor adjust the multi-turn screw at rear of sensor until the LED switches from off to on. The sensor should then be calibrated for its current environment.
