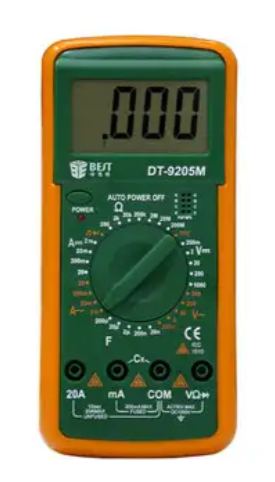

BEST DT9205M LCD AC DC Volt AMP OHM Electrical Digital Multimeter

BEST DT9205M LCD AC DC Volt AMP OHM Electrical Digital Multimeter

Descriptions :

BEST DT9205M LCD AC DC Volt AMP OHM Digital Multimeter Electrical Meter

Features :?

Brand : BEST
Model : DT9205M

CMOS integrated circuits, the original double-integrating the A / D conversion, automatic zeroing, automatic polarity selection, overrange indication.
LCD screen with high contrast 70x40MM big screen, word up to 25MM. Press the observation position needed, the display screen freely changing the angle of about 70, to obtain the best observation.

With automatic shutdown function, about 15 minutes after boot automatically cut off the power to prevent the instrument after use forgets to turn off the power to repeat the operation of the power switch, you can continue the boot.
New optimized design of highly reliable range / function rotary switch structure. With 32 stalls, avoid misuse. Absolutely an exllent choice for professional electrical multimeter.

Specifications :

Power supply 9V, 6F22
Maximum Display 1999
DC Voltage : 200mV-1000V ± (0.5% +1)
AC voltage : 200mV-750V ± (0.8% +3)
DC Current : 20mA-20A ± (0.8% +1)
AC Current : 20mA-20A ± (1% +3)
Resistance : 200??-2000M?? ± (2.5% +3)
Capacitance : 2nF-20??F

Crystal diode test : yes
Triode test : yes
Diode test : yes
On-off test : yes
Low battery indication : yes

Package Includes :

1 x BEST DT9205M LCD Digital Multimeter
1 x Set of test lead
1 x Instruction User Manual
