Arduino Pro Mini 5vdc

Arduino Pro Mini 5vdc

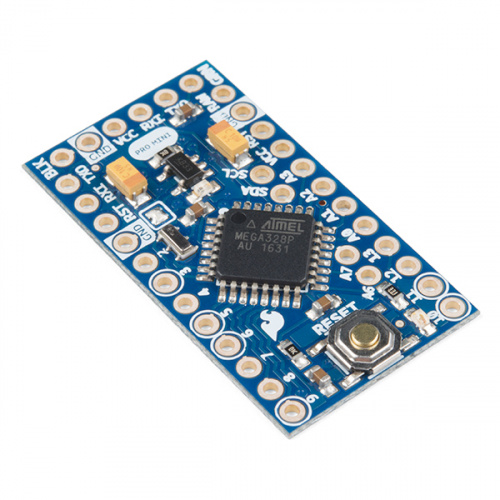

The Arduino Pro Mini 5vdc is an small, thin and lightweight microcontroller board .

Installation into objects, exhibitions or projects that require few to no reiterations.

This Arduino Board utilizes a minimalist approach, and doesn’t have pre-mounted headers

But rather allows the user to entirely decide on which types of connectors or soldering they will use.

The features were originally inspired by the need to minimize costs

Although the board has garnered a niche market amongst professionals and hobbyists alike.

As it offers surprisingly diverse functionality at a greatly reduced size and price.

And while it may not have all of the fancy extra components that other more user-friendly boards have.

For those who understand the limitations of system voltage, a lack of connectors and off board USB, these boards can be the ideal for many different projects.

Some of the unique features on this board include an off board USB connection, auto-reset support, over current protection, a 5V regulator, as well as on-board status and power LEDs.

These features, packed onto a platform barely larger than an inch squared, makes this board a true master in its niche category.

Additionally, with a weight of less than 2 grams, this tiny board can be discretely integrated into a project of almost any size.

•  ATmega328 running at 16MHz with external resonator (0.5% tolerance)

•  0.8mm Thin PCB

•  USB connection off board

•  Supports auto-reset

•  5V regulator

•  Max 150mA output

•  Over current protected

•  Weighs less than 2 grams!

•  DC input 5V up to 12V

•  On board Power and Status LEDs

•  Analog Pins: 8

•  Digital I/Os: 14
