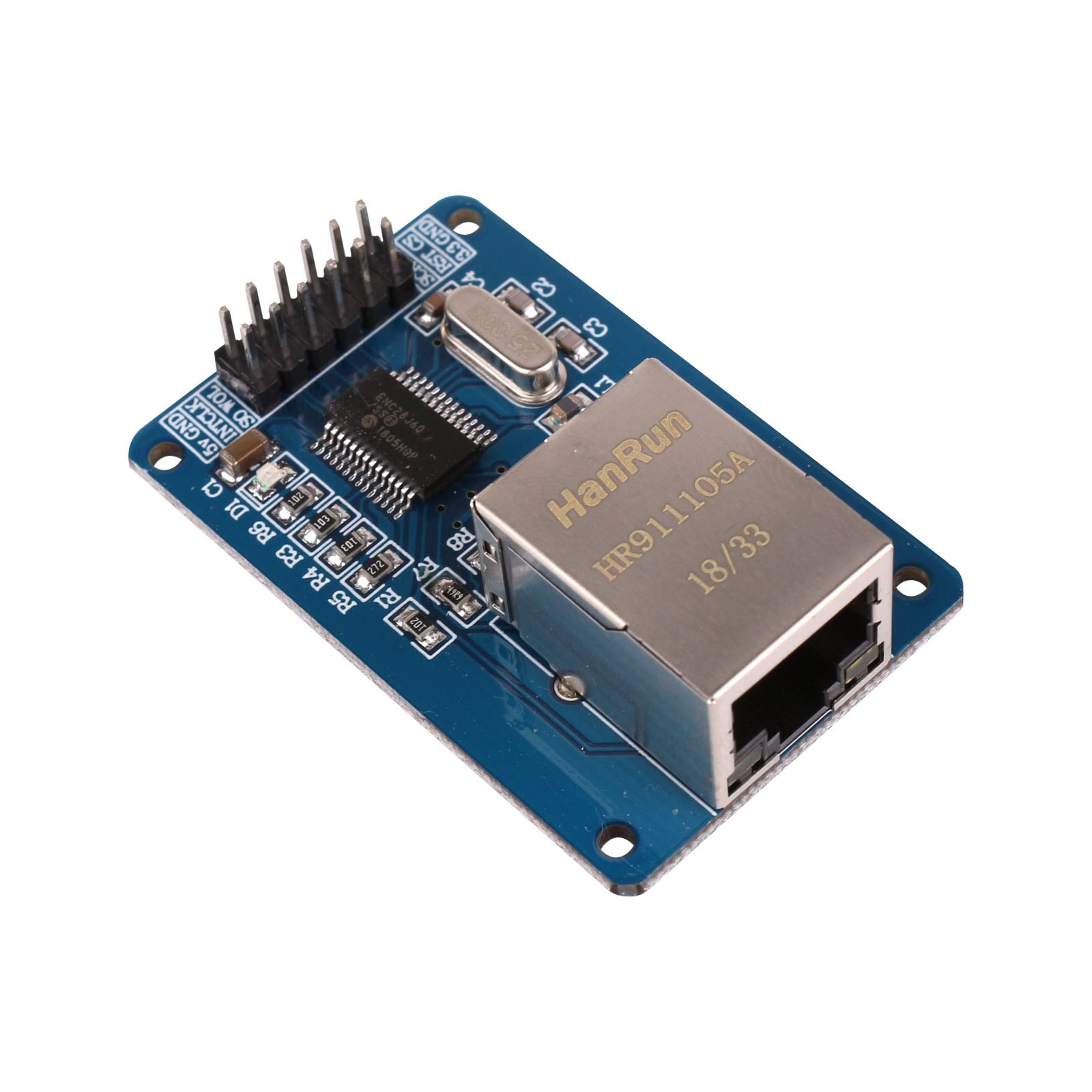

Arduino Ethernet Module
Arduino Ethernet Module includes all you need to change your Arduino into a network device.
This ethernet board is a simple way to give your Arduino or other electronics project a network connection.
These days many makers prefer WiFi type network communication.
Ethernet still has lots of application and still stays a fast and secure way to connect to network devices.
This module has an ISP interface for communication.
Note: it is important to connect this module to the 3.3V power pin and
NOT 5V. 5V is to much power for this board and will damage it.
Description
Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
Power down mode
Wake on LAN over UDP
High Speed Serial Peripheral Interfac(SPI MODE 0, 3)
Internal 32Kbytes Memory for TX/RX Buffers
10BaseT/100BaseTX Ethernet PHY embedded
Supports Auto Negotiation (Full and half duplex, 10 and 100-based )
Not supports IP Fragmentation
3.3V operation with 5V I/O signal tolerance
LED outputs (Full/Half duplex, Link, Speed, Active)
48 Pin LQFP Lead-Free Package (7x7mm, 0.5mm pitch)
ENC28J60 Ethernet chips, SOP28 package; SPI Interface; 1 x10 connector, can be easily mounted with the MCU; Built-in isolation transformer RJ45 connectors HR911102A; Power LED; Single Supply: +3.3 V; 25MHz Crystal; PCB size: 55 x 36 mm
