NE555 CD4017 5mm Red LEDs ICSK057A Electronic Fun DIY Kit

5mm Red LEDs Electronic DIY Kit (NE555)

Name: 5mm Red LEDs Electronic DIY Kit (NE555)
SKU: 608
Price: 52.00 ZAR
Availability: InStock

R52.00

NE555 CD4017 5mm Red LEDs ICSK057A Electronic Fun DIY fun circuit CD4017 counter display kit. Can simulate the dice, make fun of the game.

15 in stock

SKU: 608 Categories: DIY Kits, Kits

Description
Reviews (0)

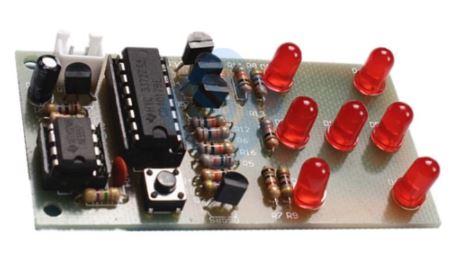

5mm Red LEDs Electronic DIY Kit(NE555)

Electronic dice kit is based on the NE555 oscillator circuit and fun circuit CD4017 counter display kit. Can simulate the dice, make fun of the game.

1. Kit parameters:
Supply voltage: 4.5-5V
Dimensions: 74 * 35mm

2. Function play:
When a power-up, 7 LED will randomly display a number of points, players press the switch S1,7 all lit LED only after about 7 seconds LED light starts blinking, until finally showed stable points. Throughout the end of the first “crap” process.

3.Circuit:

circuit mainly by the pulse generator and a decade counter circuit. Pulse generator and external elements by NE555 multivibrator, when you press the button S1 when Q1 turns on, the output pulse NE555 3 feet, then five turns the output CD4017 output high, resistors and transistors by different combination, can drive seven LED light to indicate the number of points 1-6 points.

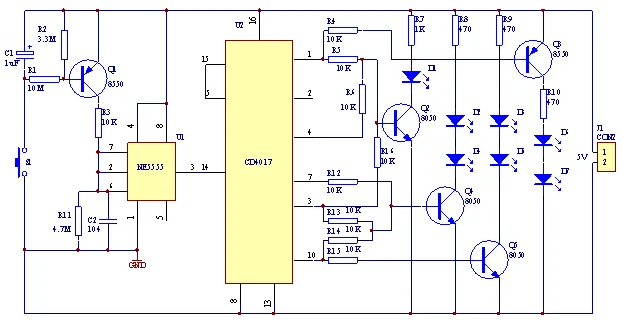

4.Circuit diagram:

5.Component list:

serial number	Component	Value	Label	serial number	Component	Value	Label
01	resistance	470R	R8 R9 R10	11	audion	S8050	Q2 Q4 Q5
02		1K	R7	12		S8550	Q1 Q3
03		10K	R3–R6 R12–R16	13	IC socket	8PIN	U1
04		3.3M	R2	14		16PIN	U2
05		4.7M	R11	15	IC	NE555	U1
06		10M	R1	16		CD4017	U2
07	capacitance	104P	C2	17	Terminal	XH2.54 2P	J1
08		1uF/50V	C1	18	Power line	XH 2P	1
09	LED	Ф5RED	D1–D7	19	PCB	FR-4	74*35mm
10	touch touch switch	665	S1	20
