1Msps Digital Oscilloscope DIY Kit+ Probe Unsoldered Flux Workshop STM32 200Khz assemble

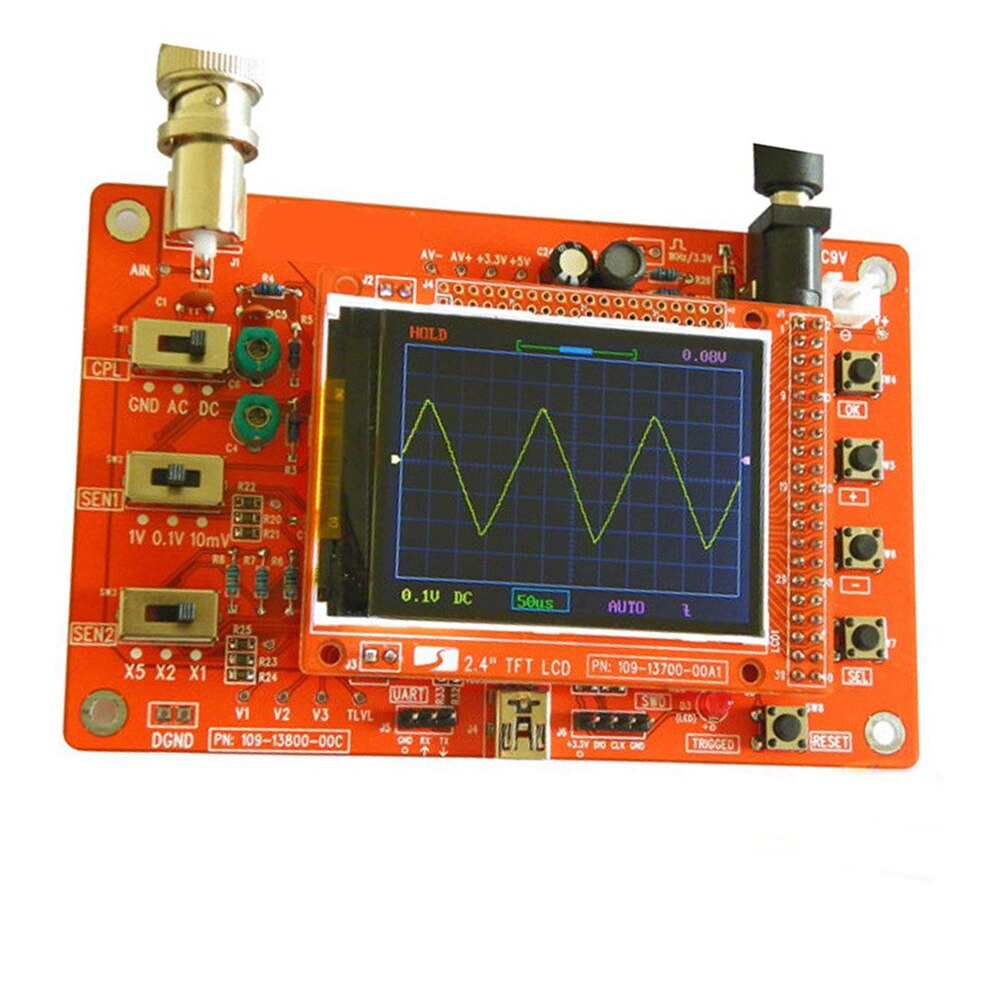

Digital Oscilloscope DIY Kit
Training for electronic production, complete detailed descriptive information, including schematics, production guidance, instructions, troubleshooting methods , etc., making a high success rate.
Component species diversity for students to identify elements, inline elements welding, soldering SMD components training.
Students can get in at the same time making a practical tool for audio, video synchronization, low-frequency switching power supply, infrared receiver transmitter signal waveform and many other occasions, effectively observed and measured , increased interest in learning, improve learning outcomes.
Kits using ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4 -inch color TFT display can be used as test ARM development board .
Available source, the ability of a friend can be secondary development kit based on, for example, it can be changed to Millivoltmeter, data loggers and so on .
Circuit is simple, reliable, inexpensive
Maximum real-time sampling rate: 1Msps
Sampling buffer depth: 1024 bytes
Analog bandwidth: 0 – 200KHz
Vertical Sensitivity: 10mV / Div – 5V / Div (1-2-5 progressive manner)
Adjustable vertical displacement, and with instructions
Input impedance: 1M
Maximum input voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
Coupling modes include DC / AC / GND
The horizontal time base range: 10 s / Div – 50s / Div (1-2-5 progressive manner)
With automatic, regular and one-shot mode, easy to capture the moment waveform
Available rising or falling edge trigger
Adjustable trigger level position , and with instructions
Observable trigger waveform before ( negative delay )
Can freeze at any time waveform display (HOLD function )
Comes 1Hz /3.3V square wave test signal source
Package Included: 1 x DS0138 Digital Oscilloscope DIY Kit + Probe Unsoldered Flux Workshop STM32 200KHz
