Application:
– Lithium battery charger
– LED Driver

Note:
– Do not combine connection of input GND and output GND

Features:
– High power, high efficiency, 5A, low ripple;

Three main functions:
– Use as an ordinary step-down module with overcurrent protection capabilities;
– As the value of various voltage lithium batteries, batteries, nickel-cadmium nickel-metal hydride – – – – Batteries (battery) charger for solar panels, wind turbines and other occasions
– Used as high-power LED constant current driver module;
– Having a constant voltage and constant current modes, the indicator light indicates which mode is currently in the module;
– When used as a lithium battery charger, you can set the float voltage and charge current, it has a light finger
– It is shown being charged or has been filled;
– Current limiting protection, output short circuit will not even burn module.

Parameters:
– Input: IN + input positive, IN- input negative
– Output way: OUT + output positive level, OUT- output negative
– Input Voltage: 4-38V
– Output voltage: 1.25-36V continuously adjustable
– Output current: adjustable, 5A
– Output Power: 75W maximum
– Operating temperature: -40 to + 85 degrees
– Operating frequency: 180KHz
– Conversion efficiency: up to 96%
– Short circuit protection: Yes (limited current 8A)
– Over temperature protection: (automatically shut off the output after overtemperature)
– Input reverse polarity protection: None, (as required in the input string into a large-current diode)
– Installation: four 3mm screws
– Connection: terminals or solder terminals, V-IN is the input, V-OUT output
– Module Size: Length 61.7mm Width 26.2mm height 15mm
– Weight: 25g

What’s in the box

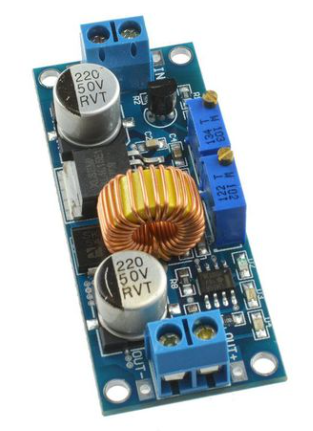

x1/5A CC&CV Buck Step-Down Power Module XL4015
