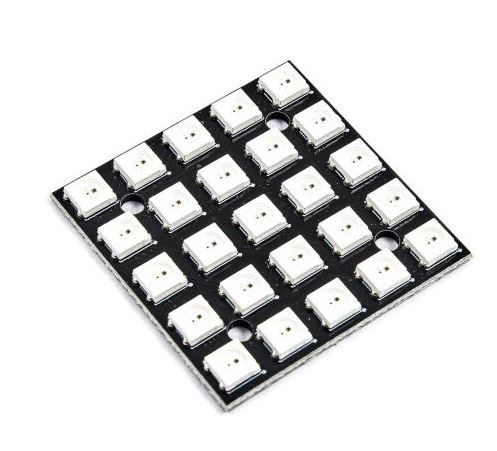

25Bit WS2812 5050 RGB LED Lamp Panel Module square

Communication interface: Single-wire communication?

It minimizes the pressure on the I/O port of the microcontroller.
Each one has ~18mA constant current drive so the color will be very consistent even if the voltage varies
Full-color module, Full color soft lights a lamp strip.

Making led screen, led wall, advertising board, apply to hotel, KTV, bars, Outdoor advertising signs, Christmas or wedding party decoration.

This RGB uses the WS2812B driver chip, so that the peripheral circuit only needs one capacitor to meet the circuit requirements, which makes the circuit simple and beautiful.
Communication interface: Single-wire communication?

It minimizes the pressure on the I/O port of the microcontroller.
Each one has ~18mA constant current drive so the color will be very consistent even if the voltage varies
Full-color module, Full color soft lights a lamp strip. Making led screen, led wall, advertising board, apply to hotel, KTV, bars, Outdoor advertising signs, Christmas or wedding party decoration.

• • • The rings are ‘cascadable’ – connect the output pin of one to the input pin of another.
    • Use only one micro controller pin to control as many as you can chain together!
    •  Each LED is addressable as the driver chip is inside the LED.
    • Power the whole ring with 5VDC and you’re ready to shine.

Specifications

• • • Full color Programmable LED Strip, WS2812B IC Built in 5050, Black PCB.
    • Each one has ~18mA constant current drive so the color will be very consistent even if the voltage varies.
    • Brand Name:WAVGAT
    • Condition:New
    • Application:16-Bi
    • Type:electronic module
    • The control circuit and the LED share the only power source. Control circuit and RGB chip are integrated in a package of 5050 components, form a complete control of pixel point.
    • Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure Cascading port transmission signal by single line.
    • Any two point the distance more than 5m transmission signal without any increase circuit.
    • When the refresh rate is 30fps, cascade number are not less than1024 points.
    • Send data at speeds of 800Kbps.
    • The color of the light were highly consistent, cost-effective..
    • Full-color module, Full color soft lights a lamp strip.
    • LED decorative lighting, Indoor/outdoor LED video irregular screen.
    • Size: 3cm x 3cm
    • Color: Black
    • Package Weight: 0.02kg (0.04lb.)
