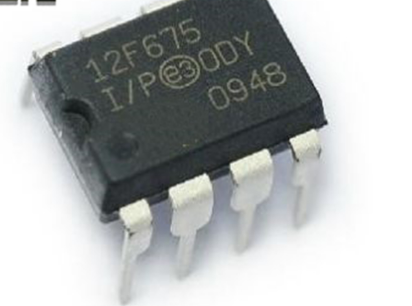

PIC 12F675
PIC12F629/675 8-Bit Flash Microcontrollers
Microchip’s PIC 12F675 Microcontrollers (MCUs) were the world’s first 8-Pin microcontrollers.
Originally launched as One Time Programmable (OTP) parts, this range of devices continues to expand as extra features and further improvements are added.
The PIC12F629/675 family of microcontrollers is based upon Microchip’s mid-range core with an 8 level deep hardware stack and 35 instructions.
These MCUs provide up to 5 MIPS, 1.75 Kbytes program memory with data memory consisting of 64 bytes RAM and 128 bytes EEPROM. On board is a RC oscillator with ±1% accuracy.
Features
35 Instructions
8 Level Hardware Stack
4 MHz Internal Oscillator
6 I/O Pins
1 Comparator
4 Channel 10-bit Analogue to Digital Converter (ADC) – PIC12F675 only
One 8-bit Timer
One 16-bit Timer
In Circuit Serial Programming (ICSP)
Specification
| Attribute | Value |
| Family Name | PIC12F |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 8 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 1024 x 14 words, 128 B |
| Maximum Frequency | 20MHz |
| RAM Size | 64 B |
| USB Channels | 0 |
| ADC Channels | 4 |
| Number of SPI Channels | 0 |
| Typical Operating Supply Voltage | 2 to 5.5 V |
| Timer Resolution | 8 bit, 16bit |
| Height | 4.95mm |
| Number of Ethernet Channels | 0 |
| Number of Timers | 2 |
| Number of I2C Channels | 0 |
| Number of PCI Channels | 0 |
| Number of ADC Units | 1 |
| ADC Resolution | 10bit |
| Maximum Operating Temperature | +85 °C |
| Length | 10.16mm |
| ADCs | 4 x 10 bit |
| Width | 0.28in |
| Instruction Set Architecture | RISC |
| Number of CAN Channels | 0 |
| Number of LIN Channels | 0 |
| Number of USART Channels | 0 |
| Timers | 1 x 16 bit, 1 x 8 bit |
| Dimensions | 0.4 x 0.28 x 0.195in |
| Program Memory Type | Flash |
| Number of UART Channels | 0 |
| Minimum Operating Temperature | -40 °C |
