Description

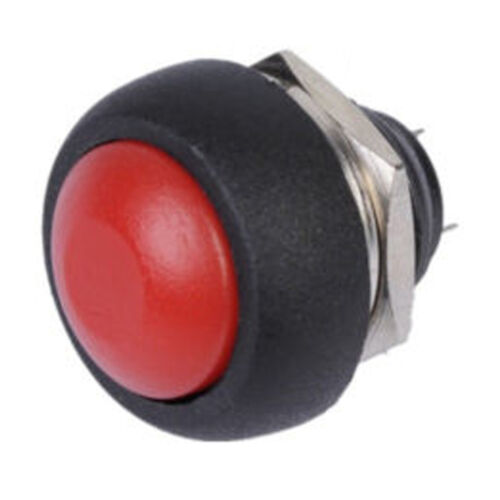

Waterproof Momentary Switch (Various-colors)
Waterproof Momentary Switch (Various-colors) are available in red, yellow, green, blue, black and white, which are great for different functions that need to be distinguished from each other.
They are ideal for your dash board or control panel.
Features
- Rich colors
- Minimal size
- Long life, 200,000+ cycles
Specifications
- Diameter: 12mm
- Degree of protection: IP67
- Dielectric withstanding voltage: 2000VAC for 1min
- Contact resistance: 5MΩ(maximum)
- Life: 200,000 cycles+
- Soldering requirement: 260°C for 5 sec
- Operating temperature: -25°C – +65°C
Commonly used as vehicle horns, ignition switch and for doorbells.
Ideal for car boat outdoor project.
This high quality push button switch is easy to install and it’s widely used to control operation of many power electronic projects.
Also great electronic component for DIY.
Round push button switch with a momentary operation and solder lug terminals suitable for applications where a small visible switch is required.
- Suitable for panel mounting
- Solder lug terminals
- Momentary Off-(On) operation
- SPST contacts
- 12mm panel cut-out
- Dimensions: 21.6 x 17.5mm (Height x Diameter)
- Maximum Panel Thickness: 2mm
Package includes:
1 x Momentary Button (ramdon colour if not specified)
