Two-wire DC-Voltage Meter 0.56Inch-RED

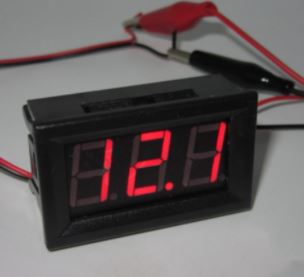

Two-wire DC-Voltage Meter 0.56Inch-RED This is a standalone Red LED DC voltage meter. It measures 4.5V-30V with 1% accuracy.
Best suitable for battery level display.
Just apply two wires on the power without any extra circuit or components, it gives the reading straight away. Easy to use, and good company with robot application
1. The wiring of this voltmeter is simple, only two wires need to be connected, the red wire is connected to the positive, and the black wire is connected to the negative. There is reverse connection protection in the meter, and the reverse connection does not burn.
2. This voltmeter does not require an external working power supply, it can work directly with the measured voltage, and the working voltage range is as wide as 4.5-30V.
3. In order to achieve the best measurement accuracy, the voltmeter will automatically move the position of the decimal point according to the difference of the measured voltage. Measuring voltage below 10V
At the time, two digits are displayed after the decimal point; when measuring a voltage above 10V, one digit is displayed after the decimal point.
4. This voltmeter can be used to monitor the battery voltage of motorcycles, automobiles, etc., and grasp the battery status in time. It can also be used for other voltage measurement purposes.
|Dimensions||Length 48x width 29x thickness 16mm||Measuring range||4.5-30V|
|Hole Size||46x27mm||.Low Input||DC4.5V (Below. Low voltage measurement is inaccurate or not displayed)|
|Lead length||20cm||.High input||DC30V(Higher than this voltage may burn out)|
|net weight||17g||Allowable error||Accurate to 0.01V below 10V, 0.1V above 10V, tolerance 1% (+/- 1 word)|
|Hair weight||22g(Including packaging)||Display method||Three digit 0.56″ LED digital tube|
|Refresh rate||About 200mS/time|
|Power supply||No power supply|
|Current consumption||Less than 20mA, generally 5-15mA|
