Ramps1.6 R6 Control Mainboard

Ramps1.6 R6 Control Mainboard

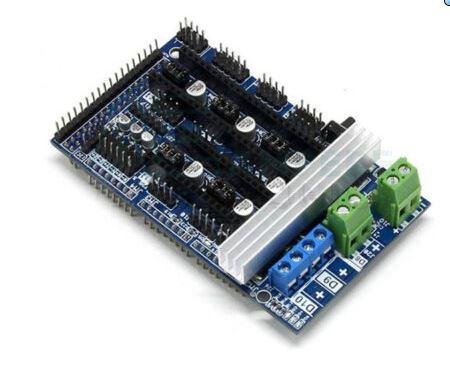

Ramps1.6 R6 control mainboard Ramps 1.6 motherboard 4 layers PCB Reprap Mendel prusa board Ramps panel compatible mega 2560

RAMPS 1.6 is optimized and launched based on Ramps 1.4 & Ramps 1.5
The Struture almost same as Ramps 1.5 , the difference is Ramps 1.6 have new 2pin connectors,which more simple and convenient to connect,also will not be burnt easily,what’s more ,Ramps 1.6 have a good Heatsink above MOS tube in order to give a better function to heat dissipation.
Beside, the Power of Ramps 1.6 is more larger than Ramps 1.5, the largest power will be up to or 270W , and Ramps 1.5 just can be up to 200W, or samller than 200W.

Product Features:

1. Ramps 1.6 is a 4-layer board
2. It can be extended to LCD and other parts.
3. There are heater and fan MOSFET outputs and 3 thermistor interfaces
4. 5A additional security and component protection fusion
5. Heated bed controls additional 11A fuses
6. Applied to 5 Pololu stepper drive board (A4988 , DRV8825 , ….)
7. Design of Pololu plate pin socket can be easily replaced or removed for future design
8. I2C and SPI pins are available for future expansion
9. Servo connectors are used for connecting limit stops, motors and light-emitting diodes. These connectors are gold-plated and have a rated current of 3A, which is very compact.
10. The LED will light when the heater has output choose 2 motors to connect to Z Prusa Mendel

Product Parameters:

• Size: 101.5 * 60.5mm
• Support motor drivers: support A4988 DRV8825 and other motor drivers (support five motor drivers Simultaneously)
• Input voltage: 12V
• Power: 200W
• Patch MOS tube: B55NF06
