Proto Shield for Arduino UNO

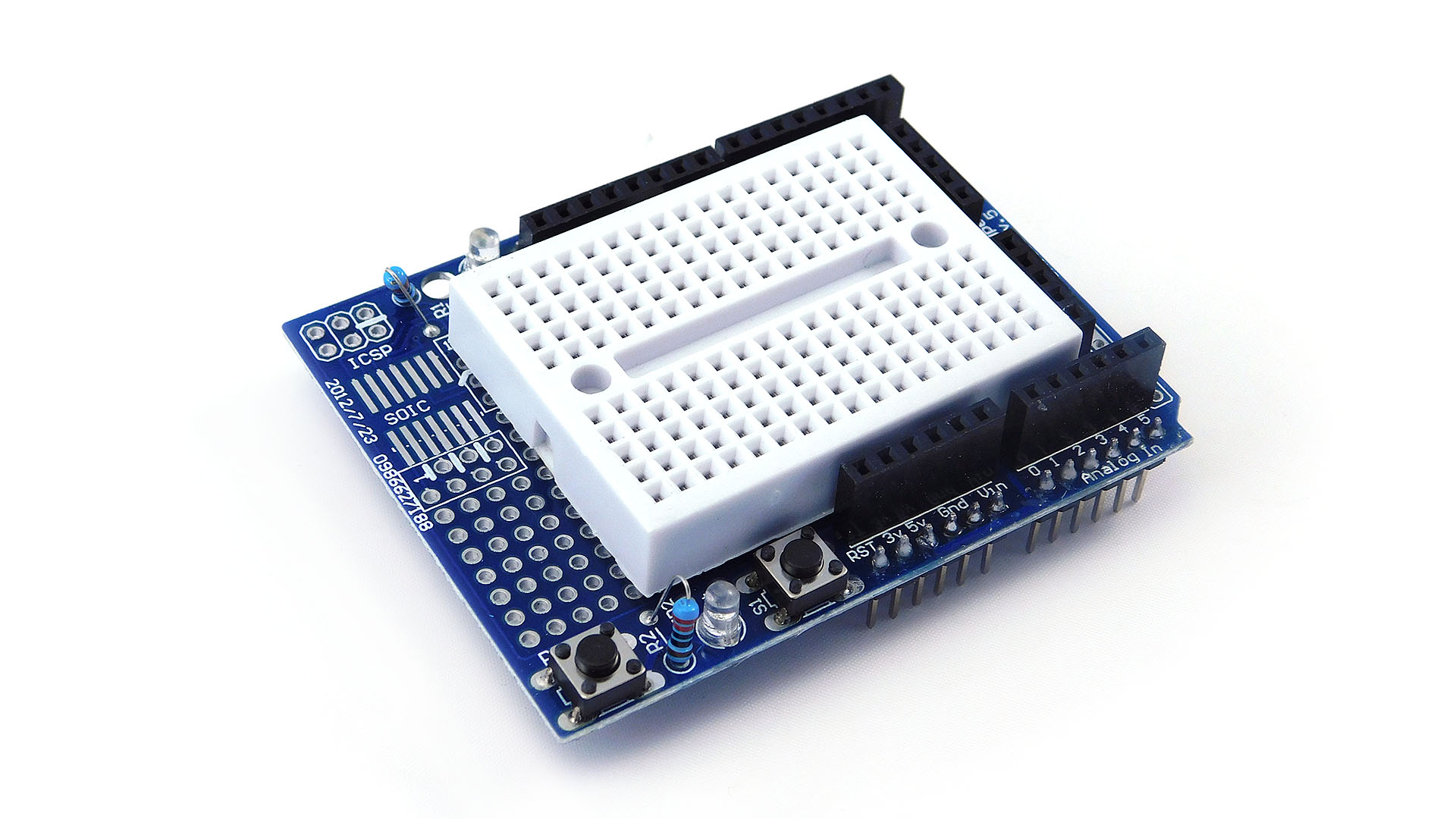

The Uno Proto Shield and SYB-170 Breadboard mounts on top of an Arduino Uno or compatibles with the same header pinout and provides both a solder type prototyping surface as well as an SYB-170 solderless breadboard that can be temporarily or permanently mounted to the shield.
- Uno Proto Shield
- SYB-170 Breadboard that can be adhered to the top of the shield or not depending on planned use
KEY FEATURES OF UNO PROTO SHIELD:
The shield brings all Uno I/O up to the top of the board and provides a remote reset button.
There is also a general purpose pushbutton which provides a ground contact when pressed as well as 2 general purpose LEDs with resistors which are active high.
There is an SOIC-14 solder footprint which is brought out to two header locations. The shield also has a spot to add an ICSP header if desired.
The prototyping board has both GND and 5V solder type buses as well as 2 female header buses that are also connected to GND and 5V. There are 2 locations provided on the board to add bypass capacitors across the 5V / GND rails if desired.
ARDUINO UNO PROTOSHIELD WITH BREADBOARD – TECHNICAL SPECIFICATIONS:
||– 2 (1 x Reset / 1 x General Purpose)|
||– 44 x 34 x 10mm|
||– 70 x 55 x 20mm|
