P6020 Oscilloscope Probe kit

Several functions combined in one, this is convenient to use.

Detachable hook tip, the hook is well protected by the plastic case.

Locating sleeves ensure the stability and reliability of the tip exposed to the test point.

Marker rings in different colors help to identify different channels.

Great choice for oscilloscope probe.

Model: P6020

Line Length: Approx 120cm

Band Width: 20MHz

Type: BNC

Rise Time: 17.5ns

Attenuation Ratio: 1:1 / 10:1

Resistance: 1MOmega / 10MOmega+-2%

Input Capacitance: 1X: 70 ~ 120pF, 10X: 14 ~ 18pF

Input Voltage: 1X: 200Vp-p, 10X: 600Vp-p

Operating Environment: 0-50 degrees Celsius

Compensation Range: 15pF-45pF

Operating Humidity: 0-80%RH

Package Weight : 125 G / 4.41

Ounces Package Dimensions (L*W*H) : 200*135*20 MM / 7.87*5.31*0.79 Inches

Retail Packaging: Yes, Blister Packaging

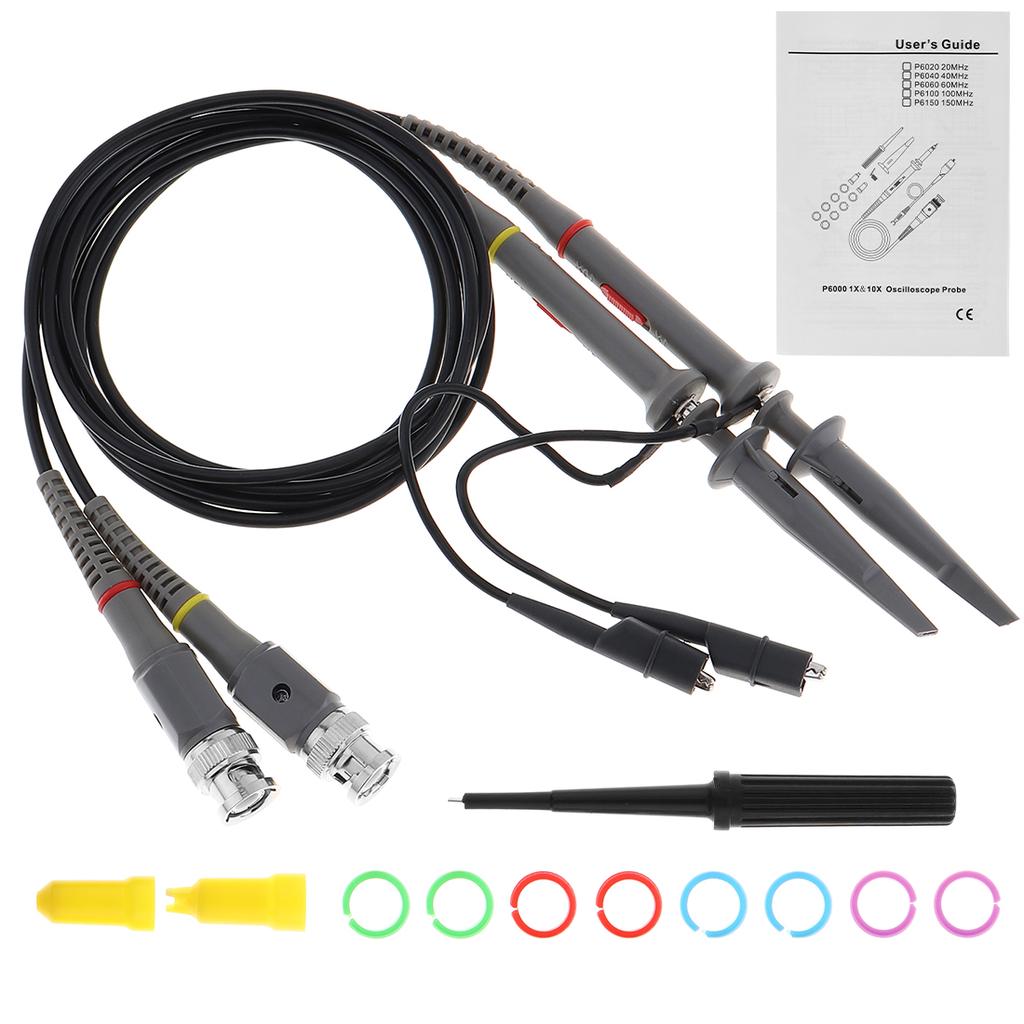

Package Include: 2 x Voltage Oscilloscope Probe 1 x Accessories Set

Details pictures :
