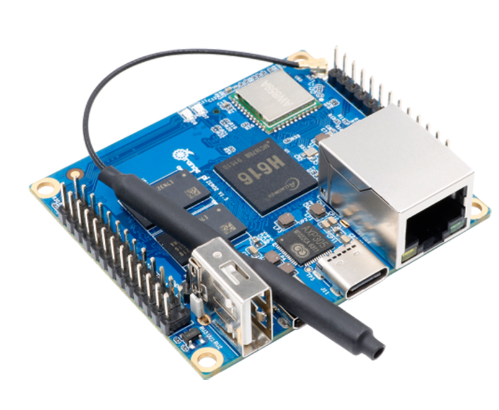

The Orange Pi Zero 2 is an open-source SBC (Single Board Computer) which features a high performance CPU, GPU, DDR3 SDRAM, video outputs, ethernet support, dual-band WiFi, Bluetooth 5.0, and the list goes on. The Orange Pi Zero family was primarily designed to be the smallest and most compact range of devices offered by Orange Pi, with the main-board of the Zero 2 measuring a mere 60x53mm. At the heart of the device sits an Allwinner H616 64-bit 1.5GHz quad core Cortex A53 processor, alongside a Mali G31 MP2 graphics processor, with 1GB of DDR3 SDRAM to top it all off. Compatible operating systems include Android 10, Ubuntu, and Debian.
Features / Specs
Brand: Orange Pi
Model: Zero 2
CPU: Allwinner H616 64-bit 1.5GHz Quad Core Cortex A53
GPU: Mali G31 MP2 (Supports OpenGL ES 1.0/2.0/3.2 / OpenCL 2.0)
Video Decoding: H.265 Main10 @ L5.1 decoder up to 4K @ 60fps or 6K @ 30fps / VP9 Profile 2 decoder up to 4K @ 60fps / AVS2 JiZhun 10-bit decoder up to 4K @ 60fps / H.264 BP/MP/HP @ L4.2 decoder up to 4K @ 30fps
Video Encoding: H.264 BP/MP/HP encoder up to 4K @ 25fps or 1080p @ 60fps / JPEG snapshot performance of 1080p @ 60fps
Memory: 1GB DDR3 SDRAM (Shared by CPU and GPU)
On-Board Storage: TF Card Slot / 2MB SPI Flash
On-Board Wired Network: 10M/100M/1000M Ethernet
On-Board Wireless Network: AW859A Chip / Supports dual-band WiFi (IEEE 802.11 a/b/g/n/ac) / Supports Bluetooth 5.0
Video Outputs: Micro HDMI 2.0a up to 4K @ 60fps / TV CVBS output – Supports PAL/NTSC (Via Expansion Board)
Audio Outputs: Micro HDMI / 3.5mm Audio Jack (Via Expansion Board)
Input Power Source: USB Type-C Interface (Power supply should be rated at 5V 3A)
USB Ports: 1x USB 2.0 Type-A Socket (2x Additional USB 2.0 Type-A Sockets via the Expansion Board)
Low-Level Peripherals: 26-Pin header with I2C, SPI, UART and multiple GPIO ports / 13-Pin header with 2x USB host ports, IR input, TV-Out, Audio-Out (No MIC) and 3 GPIO ports
Debugging Interface: 3-Pin Header – UART Serial Port (RX, TX and GND pins)
Indication LEDs: Power LED / Status LED
Supported Operating Systems: Android 10 / Ubuntu / Debian
Dimensions: ~(60mm x 53mm)
