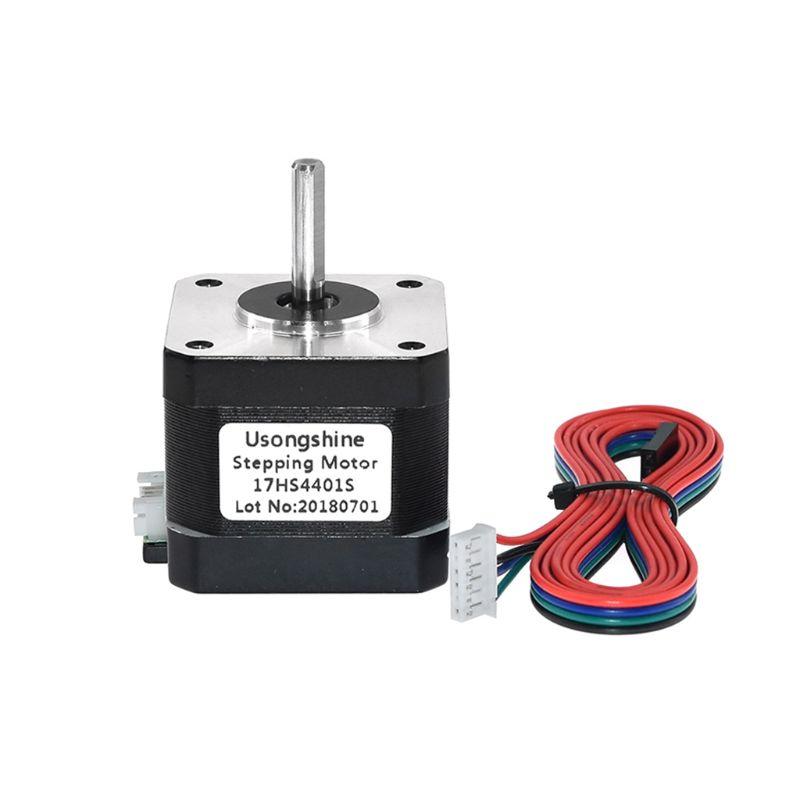

NEMA-17 42 Stepper-Motor 17HS4401-(DuPont-1M-wire)
NEMA-17 42 Stepper-Motor 17HS4401-(DuPont-1M-wire) 42BYGH 1.5A 38mm Stepper Motor For CNC Part 3D printer.
Overview
17HS4401 4-Lead Nema17 42 Motor 42BYGH 1.5A 38mm Stepper Motor For CNC Part 3D Printer
Model Number: 17HS4401
Current / Phase: 1.5A
Step Angle(degrees): 1.8
Phase: 2
Type: Hybrid
Certification: ROHS,CE
Holding Torque: 4000
Current / Phase: 1.5A
Step Angle(degrees): 1.8
Phase: 2
Type: Hybrid
Certification: ROHS,CE
Holding Torque: 4000
Step angle accuracy: + – 5%(full step,not load)
Resistance accuracy: + – 10%
Inductance accuracy: + – 20%
Temperature rise: 80deg Max(rated current,2 phase on)
Ambient temperature ———-20deg ~+50deg
Insulation resistance:100M Min,500VDC
Insultion Strength——–500VAC for one minute
Cable sign:
Red: A+
Blue: A-
Green: B+
Black: B-
