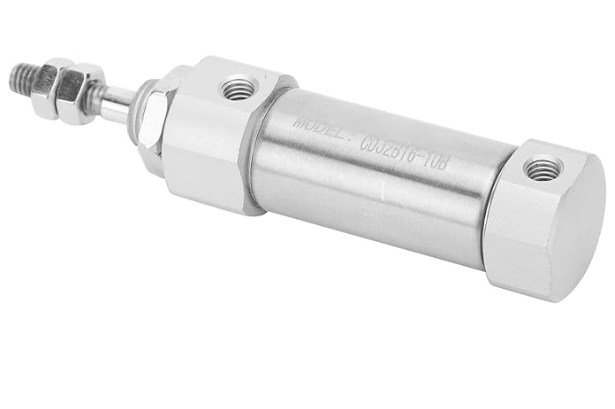

CDJ2B16-20B Mini Air Cylinder Pneumatic

CDJ2B16-20B Mini Air Cylinder Pneumatic

Product description
Specification:
Item type: pneumatic air cylinder.
Bore: approx. 16 mm.
Cylinder stroke: approx. 20 mm.

Use liquid: air.
Action mode: dual acting.
Maximum working pressure: 0.7 MPa
Minimum working pressure: 0.06 MPa
Environment and liquid temperature: -10°C ~ -60°C.
Piston speed: 50 ~ 750 mm/s.
Buffer: rubber buffer
Travel tolerance: approx. 0 ~ 1.0 mm / 0 ~ 0.04 inches.
Oil: No need
Port size: M5*0.8

Package contents:
1 x cylinder.
