Arduino Nano CH340 Micro USB

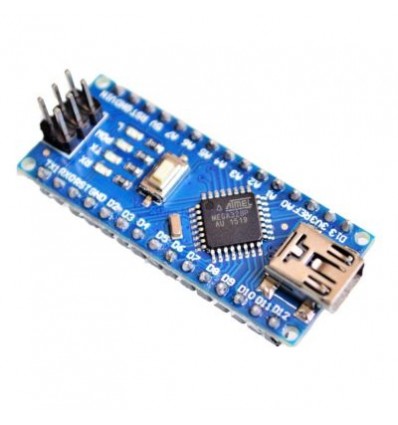

Arduino Nano CH340

This Arduino Nano CH340 product is a cost effective version on the original Arduino Nano.

The only difference being that the USB to Serial converter chip is the CH340 instead of the Atmega16U2 FTDI chip.

As the name would suggest, the Arduino Nano is a more compact board.

Designed to provide very similar functionality to the Arduino UNO and Duemilanove – only in a smaller, more space-efficient package.

It utilizes a mini USB connector, compared to the standard size, and doesn’t require an external power source.

Rather, the efficient design allows for the single connector to simultaneously provide power, as well as access to the microcontroller.

Based on the ATmega328 microcontroller, the breadboard-friendly Arduino Nano offers a total of 14 digital I/O channels, 6 of which are PWM I/O, as well as 8 analog inputs.

The board runs at 16 MHz clock speed and utilizes 32kB of flash memory – with 2KB reserved for operating the bootloader.

The primary difference when comparing the Nano to the UNO is that the Nano offers two extra I/O pins, a higher clock speed and better storage space.

Additionally, while the UNO was designed for beginners to easily learn and utilize, the Nano is more suited to advanced users.

TYPICAL APPLICATIONS FOR ARDUINO NANO CH340 BOARDS:

Because of the sheer versatility of the Arduino Nano, the list of applications and uses is almost endless.

From simple displays of numbers, words or other LED and LCD imagery.

All the way through to motion-sensor security systems, you will certainly be able to find a fun or practical use for it somewhere in your home.

Some fun home-project applications include:

• Multi-LED displays
• Motion or sound-based alarm systems
• Hand-gesture interpreters
• Self-tuning radios
• Motion-activated water guns
• Remote controlled cars
