Description

Product Description

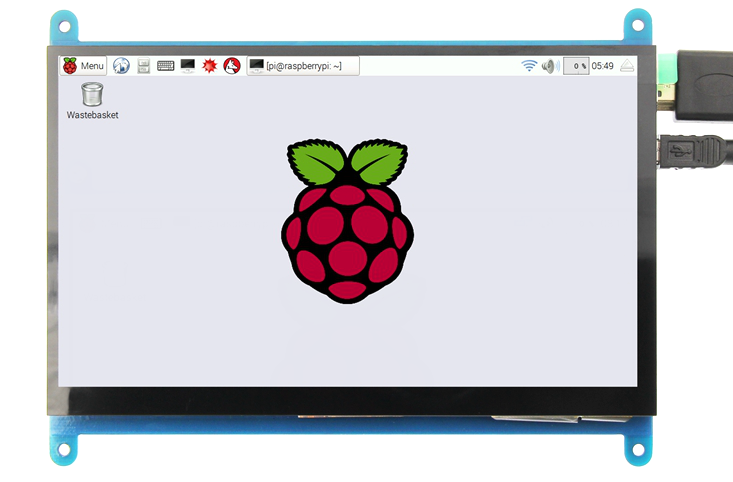

• 7’’ standard display, 1024 × 600 Hardware resolution, Up to 1920×1080 software configuration resolution.
• Capacitive touch screen, maximum support 5 point touch
• Support backlight control alone, the backlight can be turned off to save power
• Support Raspberry Pi, BB Black, Banana Pi and other mainstream mini PC
• Can be used as general-purpose-use HDMI monitor, for example: connect with a computer HDMI as the sub-display
• Used as a raspberry pi display that supports Raspbian, Ubuntu, Kali-Linux, Kodi, win10 IOT, single-touch, free drive
• Work as a PC monitor, support win7, win8, win10 system 5 point touch (XP and older version system: single-point touch), free drive
• CE, RoHS certification

Product Parameters

• Size: 7.0 (inch)
• SKU: MPI7002
• Resolution: 1024*600 (dots)
• Touch: five-point capacitive touch
• Active Area： 154.2144*85.92(mm)
• Product Size: 164.9*124.27 (mm)
• Package Size: 211*150*53 (mm)
• Rough Weight(Package containing): 405 (g)
• Power Dissipation: 0.62A*5V @1024*600

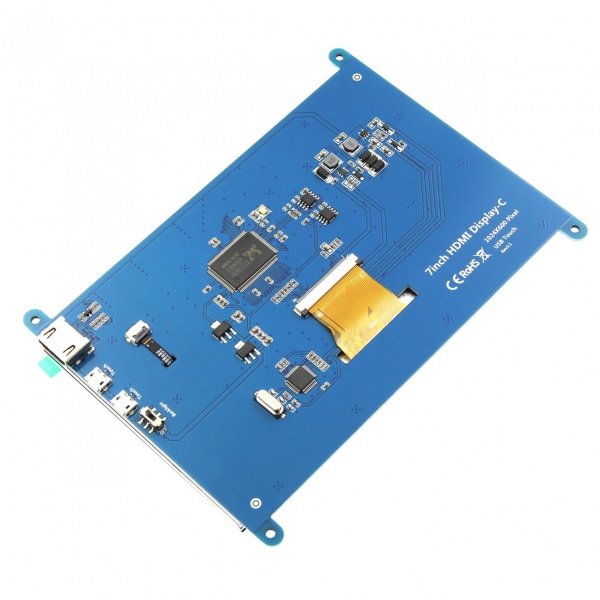

Hardware Description

• ① Backlight Power switch: Controls the backlight turned on and off to save power.
• ②&③ USB Touch / power supply connector: For power supply and touch output, the functions of the both are the same, can just use one of them.
• ④ HDMI interface: For connecting motherboard and LCD monitor to HDMI transmission.
