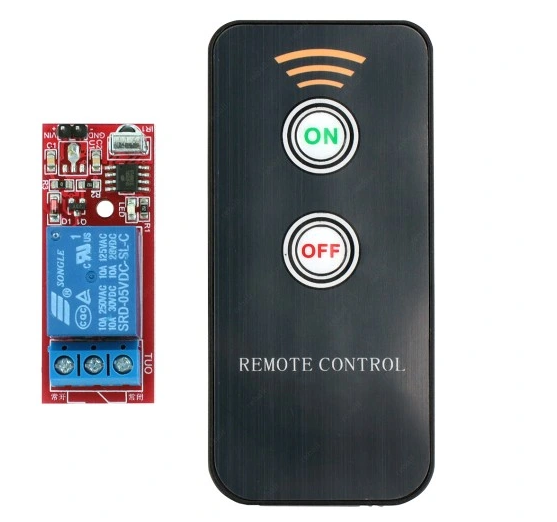

5V 1-CHANNEL RELAY MODULE WITH IR REMOTE – 10A 250V

MODEL IR05 5V

Mode of action:

After turning on the ON button on the remote control, the states of the output contacts change to stable, opposite states and the LED lights up. The system remains in this state until the OFF button on the remote control is pressed. Then the states of the output contacts change and the LED turns off.

Application – to turn on and off:

• electrical devices up to 2500W,
• lighting,
• audio systems,
• as an element of a smart home,
• Arduino module.

Technical data:

• supply voltage: 5V
• output: ARK terminal strip
• relay load max.: 10A/250VAC; 10A/30VDC
• board dimensions: 20x50mm (height 18mm)
• remote control dimensions: 40x86mm
• included: IR remote control with CR2025 battery (range approx. 8m)

The system does not remember the state after a power failure.

After connecting the power supply, the module always remains in the off state.
