Description

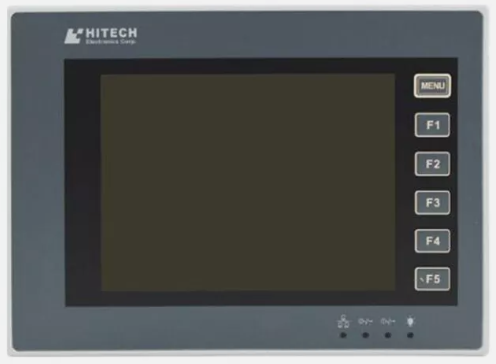

5.7″ HMI Touch screen HITECH PWS6600S-S
Performance specification
| Item | PWS6600S-S |
| Display Type | Mono STN LCD |
| Display Color | 16 shades of blue |
| Display Size | 5.7” (diagonal); display area is 117.2 X 88.4mm |
| Number of Pixels | 320×240; Number of 8×8 characters displayable is 40×30. |
| Display Adjustment | Via touch panel & VR on the back |
| Back Light | CCFT; Lifetime 50,000 hours @25 ºC |
| Touch Screen | Analog |
| Keypad | 1 “Menu” key and 5 user-defined Function keys (F1 … F5) |
| Keypad Pressure & Lifetime | 350±50gf operating force, Lifetime is over 1 million activations. |
| Input Power | 24VDC±15% ; less than 20W |
| Flash ROM | 4M bytes |
| RAM | 512 K bytes |
| CPU | 32 bits RISC |
| Battery Backed Memory | 512 K bytes |
| RTC | Yes (w/Replaceable Lithium Battery) Notice: When using the machine for the first time, please remember to reset RTC. |
| Data/Recipe | — |

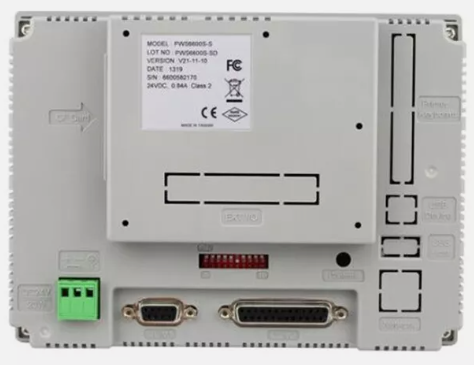

| COM1 | 9-pin female connector: RS232/RS485 |
| COM2 | 25-pin female connector: RS232/RS422/RS485 |
| Multi-functional Port | — |
| Ethernet | — |
| Front Panel Seal | IP65 |
| Ambient Temperature | 0~50ºC |
| Storage Temperature | -10~60ºC |
| Ambient Humidity | 10-90%RH(0~40° C),10-60%RH(41-50° C),non-condensing |
| Vibration Endurance | 0.5mm displacement, 10-55Hz, 2 hours per X, Y, and Z-axis directions |
| Shock Endurance | 10G, 11ms three times in each direction of X, Y, and Z axes |
| CE | EN61000-6-4,EN61000-6-2 |
| External Dimensions (mm) | 195(W) x 145(H) x 59.1(D) |
| Cut-out Dimensions (mm) | 185.8 x 135.8 |
| Weight | 0.81 Kg |
| Cooling | Natural cooling |
Package included:
1x PWS6600S-S human machine interface HMI touch screen new in box;
1x PWS6600S-S human machine interface HMI touch screen new in box;
