Description

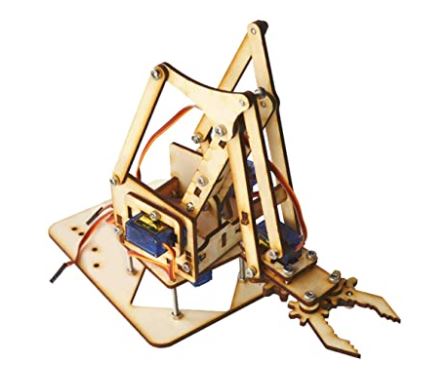

4 DOF Wooden Robot Arm Kit (without-Servo)
Note: The kit does not include 9g SG90 servo now. The servos will send as a gift on the order page, while stock lasts.
Description:
– Affordable 4-DOF manipulators, each articulated with sg90 servo, the overall use of wood material, lightweight.
– Can be controlled using Arduino.
– Mechanical parts are highly versatile
– Wood board laser cutting, precision
– It needs you to assemble by youself. But it is easy to DIY.
Specifications:
– Name: 4-DOF Robot Arm Kit
– Material: Acrylic
– Weight: about 200g
– Servo: 4 mini SG90 servos
– Total length of product: about 350mm
– Arm extended maximum length: about 200mm
– Width: about 95mm
About SG90 Servo:
– Size: 23mmX12.5mmX29.5mm
– Weight: 9 grams
– No load speed: 0.12 sec / 60 deg (4.8 V)
– No load speed: 0.12 sec / 60 deg (4.8 V)
– Blocking torque: 1.2-1.4 kg / cm (4.8V)
– Operating temperature: -30~~+60 degrees Celsius
– Dead zone setting: 7 microseconds
– Working voltage: 4.8V-6V
