10mm LED Red

Description

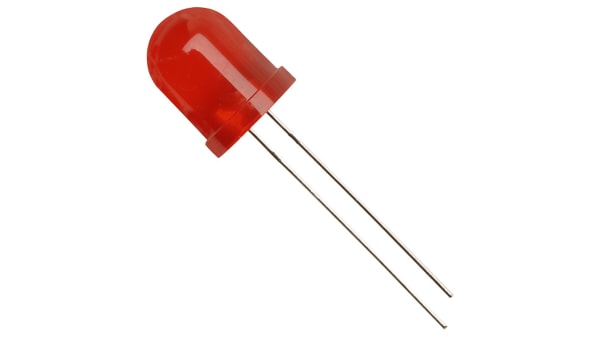

10mm LED Red

These are general purpose large 10mm red LEDs with diffused lens and good brightness.

PACKAGE INCLUDES:

• Qty 1 – Red diffused 10mm LEDs, General Purpose

KEY FEATURES OF LED RED 10MM DIFFUSED:

• General purpose LEDs
• Red color (625nm wavelength nominal)
• Large 10mm diameter

These are general purpose 10mm LEDs with diffused lens and good brightness that work well for general indicator use. The large size is handy when a larger indicator is desired.

The shorter of the two leads denotes the cathode.  Note that there is usually a flat surface on both sides of the housing, so you cannot rely on that as the cathode indication.

For size comparison, a 3mm, 5mm and 10mm LED are shown to the right.

A current limiting series resistor is needed to protect the LED and/or the device being used to drive it.

Calculating LED Resistor Values
